4 Way Flat X Heavy Duty Canopy Fitting
4 Way Flat X Heavy Duty Canopy Fitting
Couldn't load pickup availability

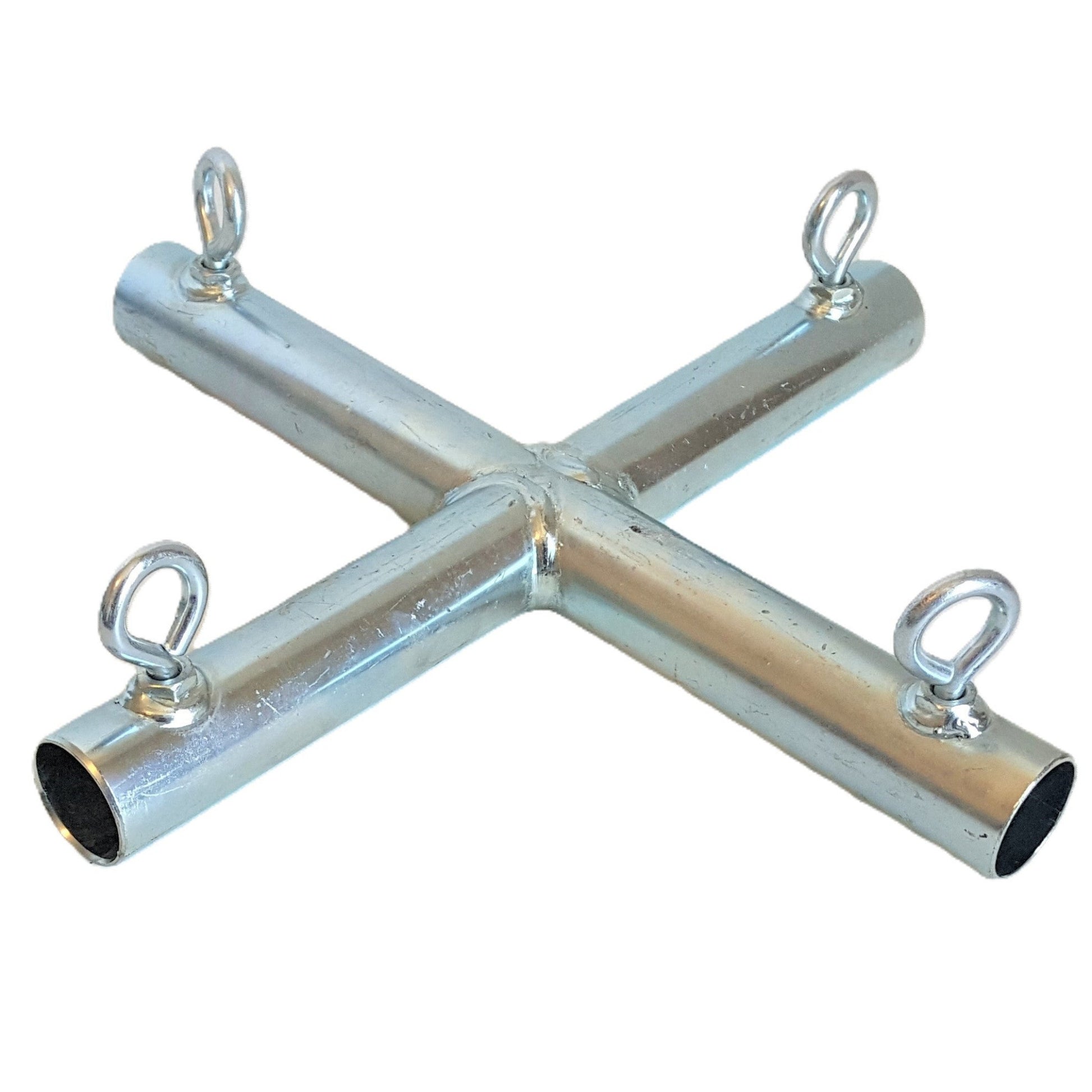

Heavy Duty galvanized steel fitting
- Hand tightening eye bolts so you don't have to use any tools. Nuts are welded all the way around (not tack welded)
- 90 Degree angle

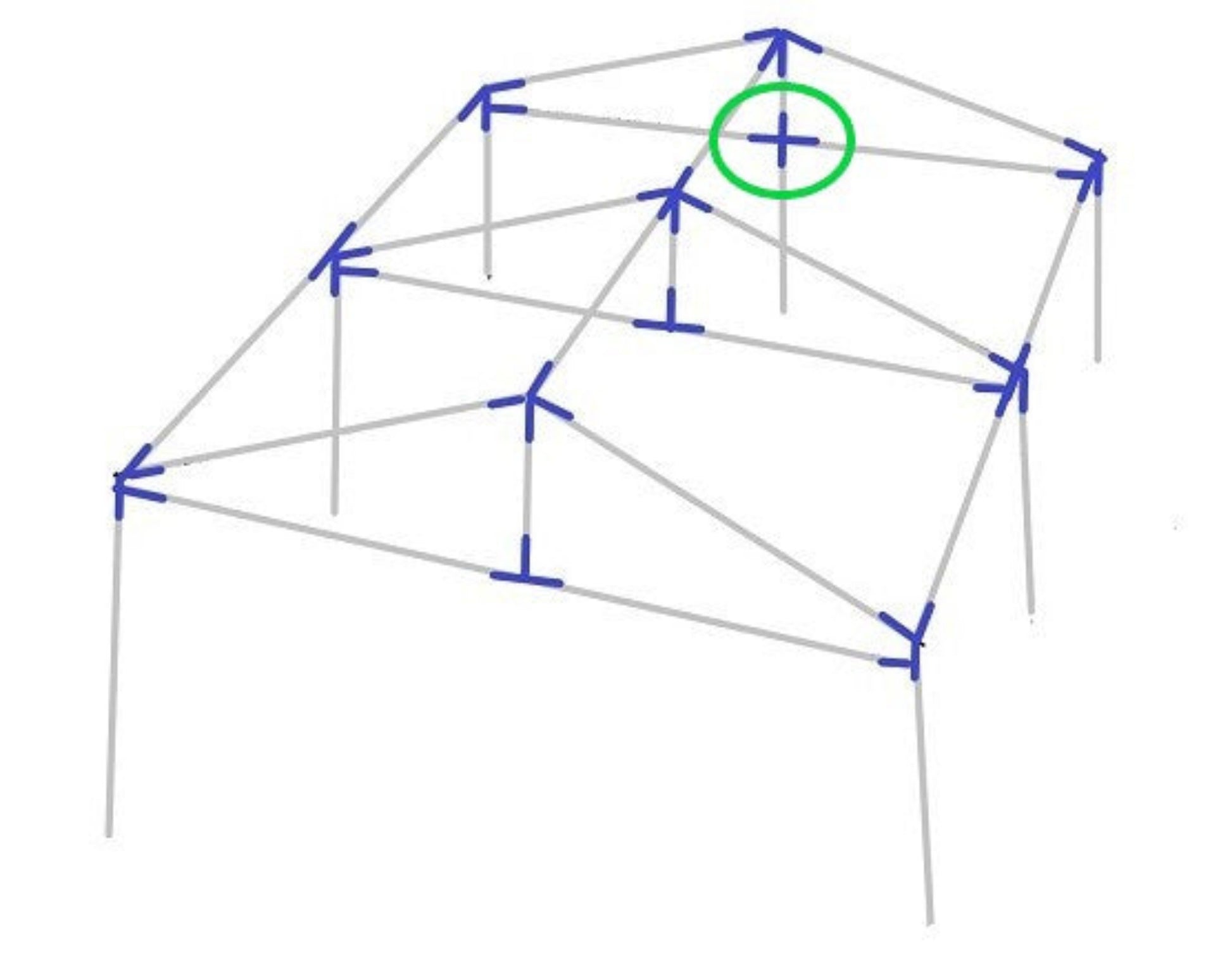

- Great for flat X center connections with no leg — used in support canopy builds to connect pipe runs
Works great with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies
Fitting Size Specifics
3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.
1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"
1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"
1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16".
🔧 Complete Your Support Canopy Build
Pair this fitting with others from our support family for a full heavy-duty canopy frame:
- 4 Way Low Peak Left Support Corner Heavy Duty Canopy Fitting — left support corner connection
- 4 Way Low Peak Right Support Corner Heavy Duty Canopy Fitting — right support corner connection
- 5 Way Edge Low Peak Support Heavy Duty Canopy Fitting — edge support connection
- 4 Way Low Peak Top End Down Angle with Leg Heavy Duty Canopy Fitting — top end connection with leg support
- 5 Way Top Center Low Peak with Leg Heavy Duty Canopy Fitting — five-point center connection with leg
- 3 Way T Shaped Heavy Duty Canopy Fitting — T-shaped connection for support fittings
Also shop: Poly & Mesh Tarps to cover your set up| Ball Bungees to attach tarp to bars| Foot Pads to anchor your setup, protect surfaces & create a stable base
