9 Square Game Pipe Fitting Kit

Everything you need to frame out a professional-grade 9 Square court — just add your pipe. This kit includes all the pipe fittings required to construct the full 9-square grid, available in four pipe sizes to match your existing setup.

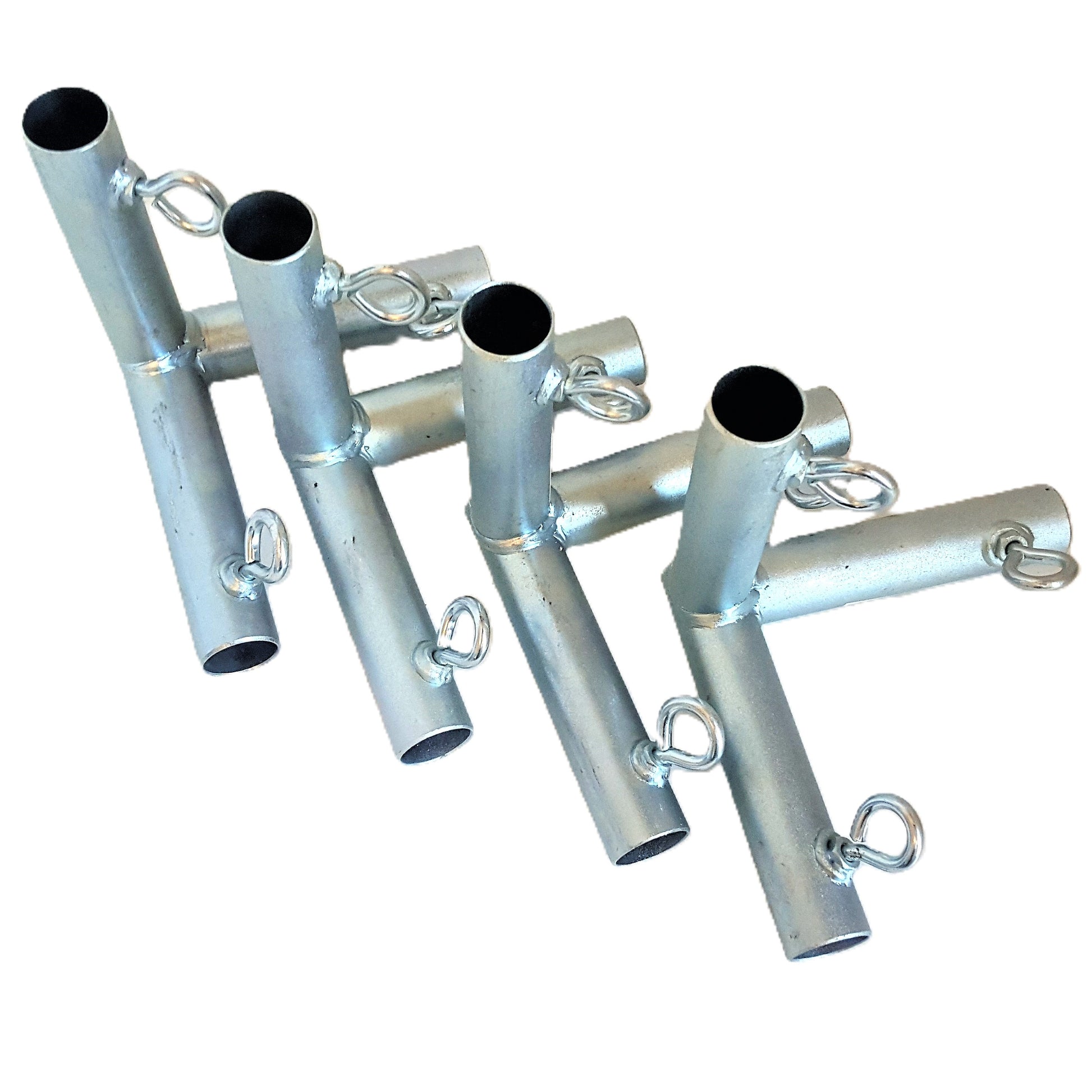

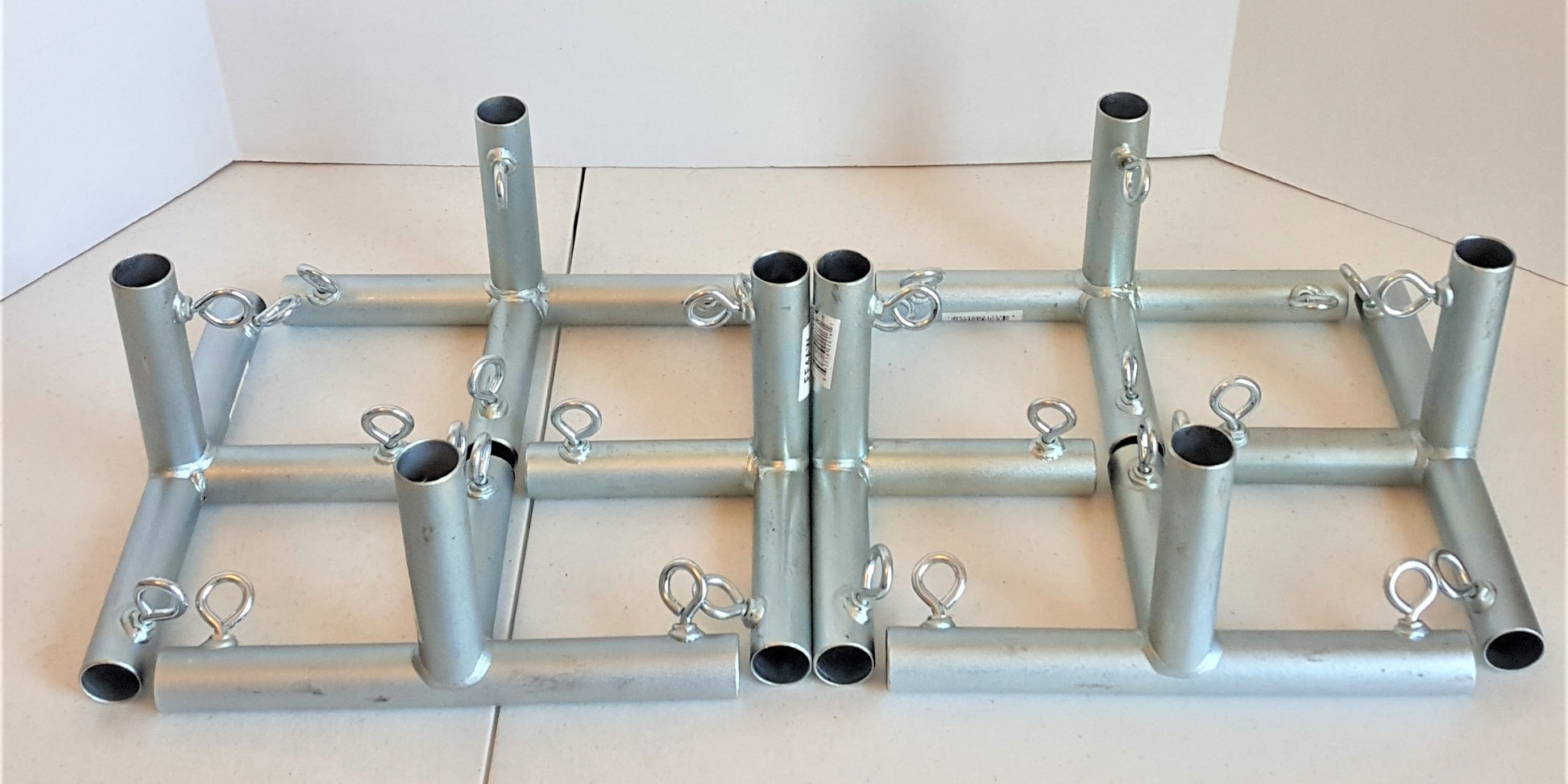

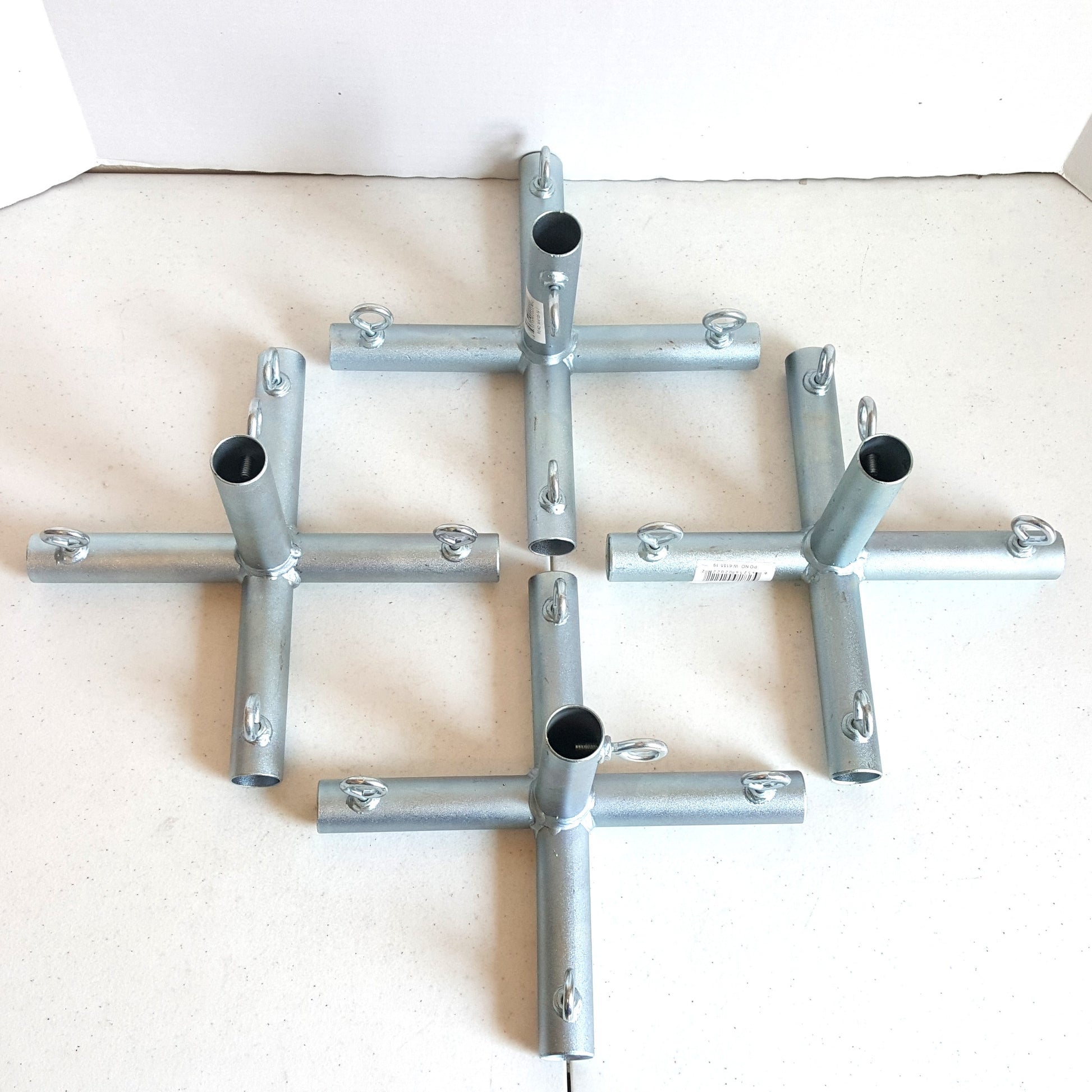

• These kits include all fittings to put the pipe together

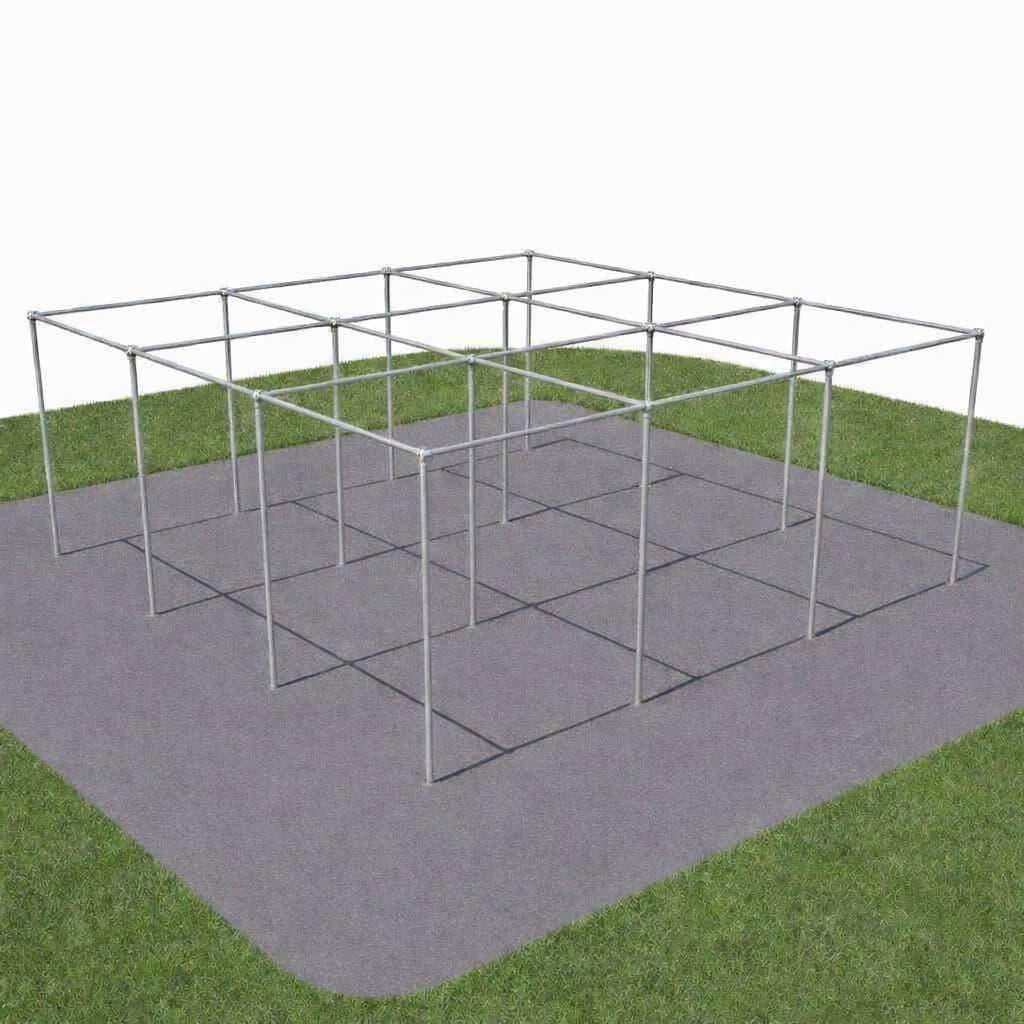

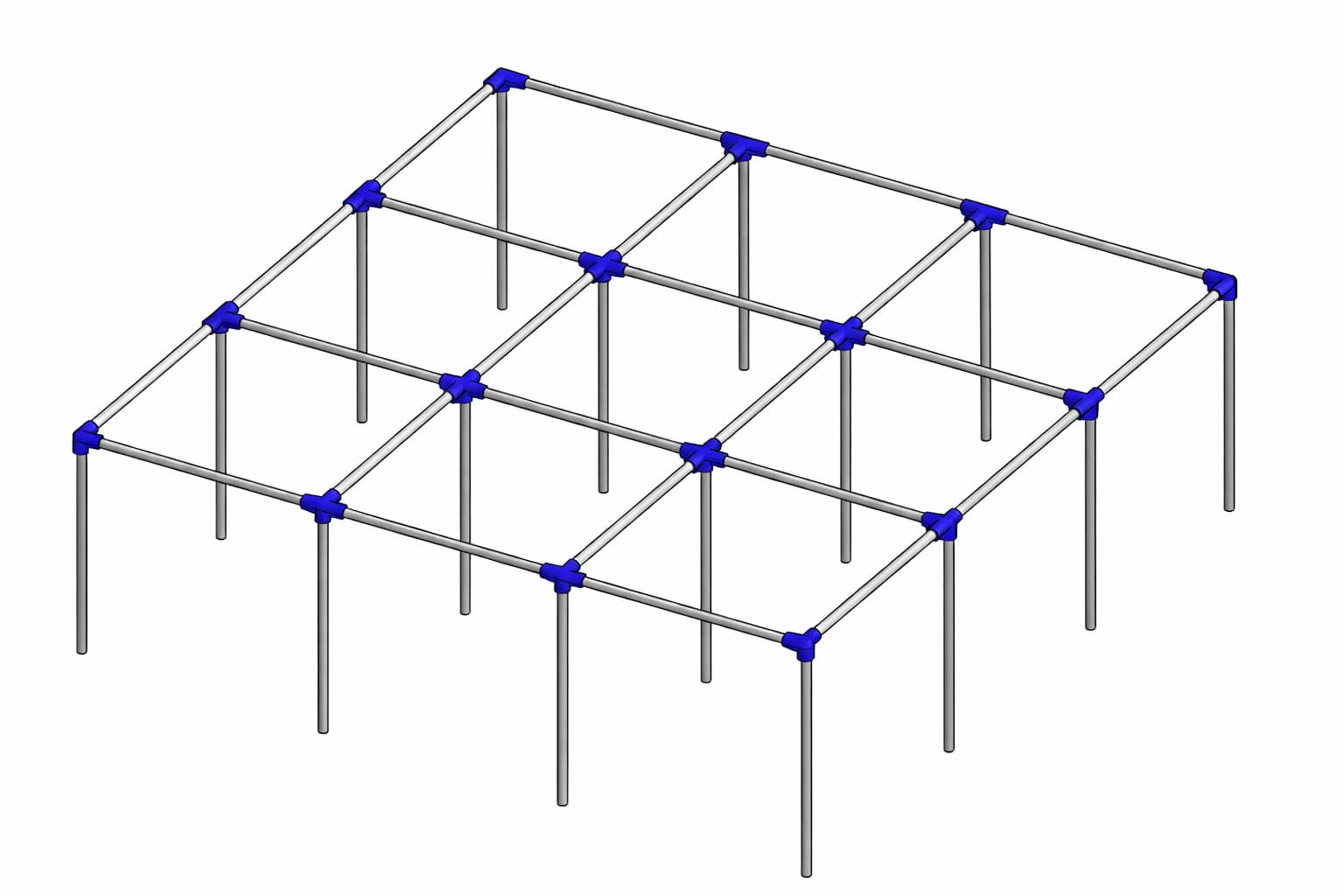

• This kit makes a standard 9 square game that is 9' x 9'. Each square is 3' x 3'. If you want to change the size just cut your pipe accordingly
• No tools necessary: Every pole slides right into the fitting and then you hand tighten the eye bolts which makes no tools necessary to assemble.

PIPE NOT INCLUDED - EMT pipe works best

     NOT compatible with PVC pipe

Pipe Needed:

• 16 pcs - 5' pipe for the height
• 24 pcs - 6' pipe for the squares

Fitting Size Specifics

Fitting Size Specifics

3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.

1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"

1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"

1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16"

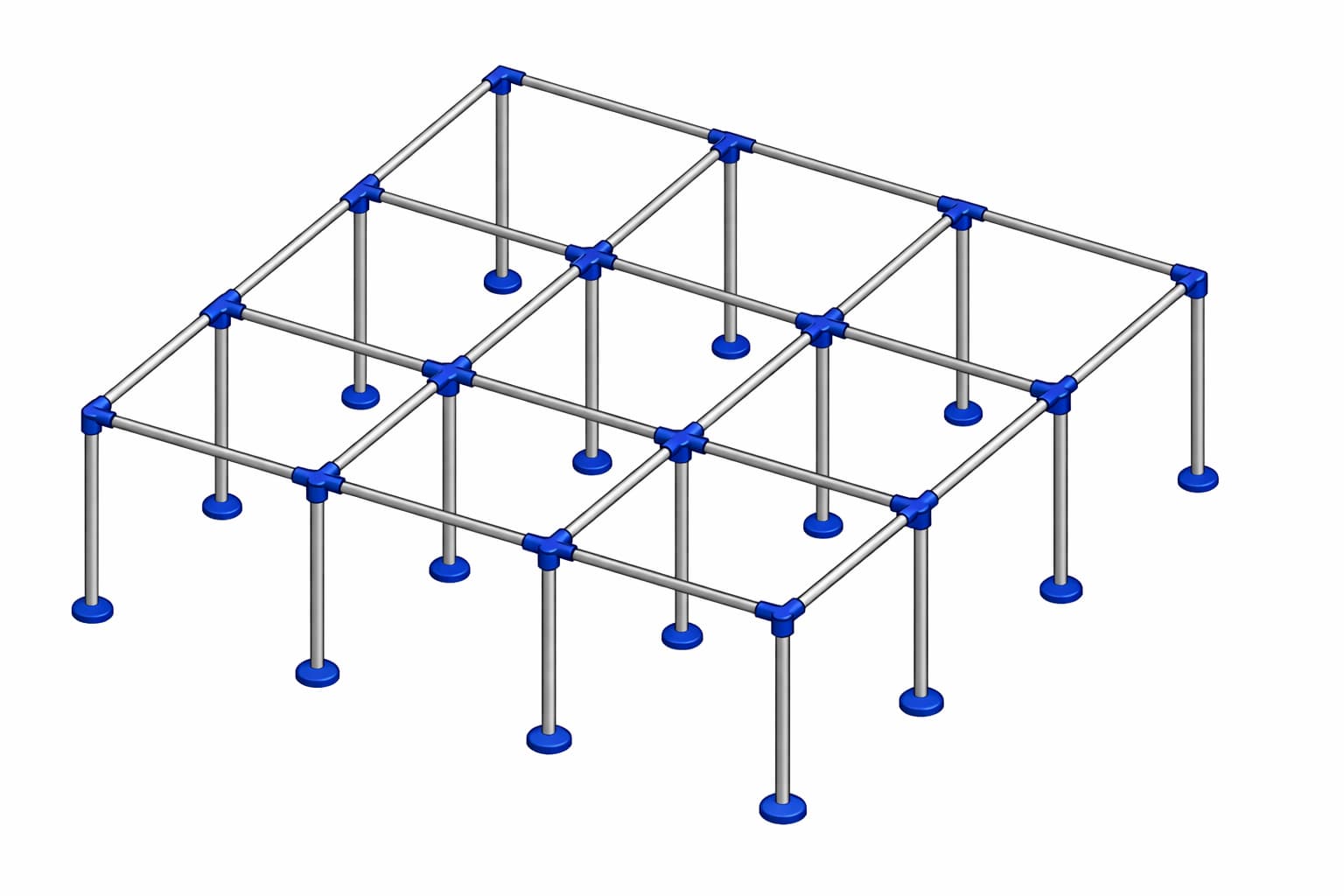

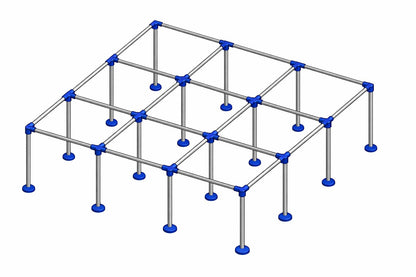

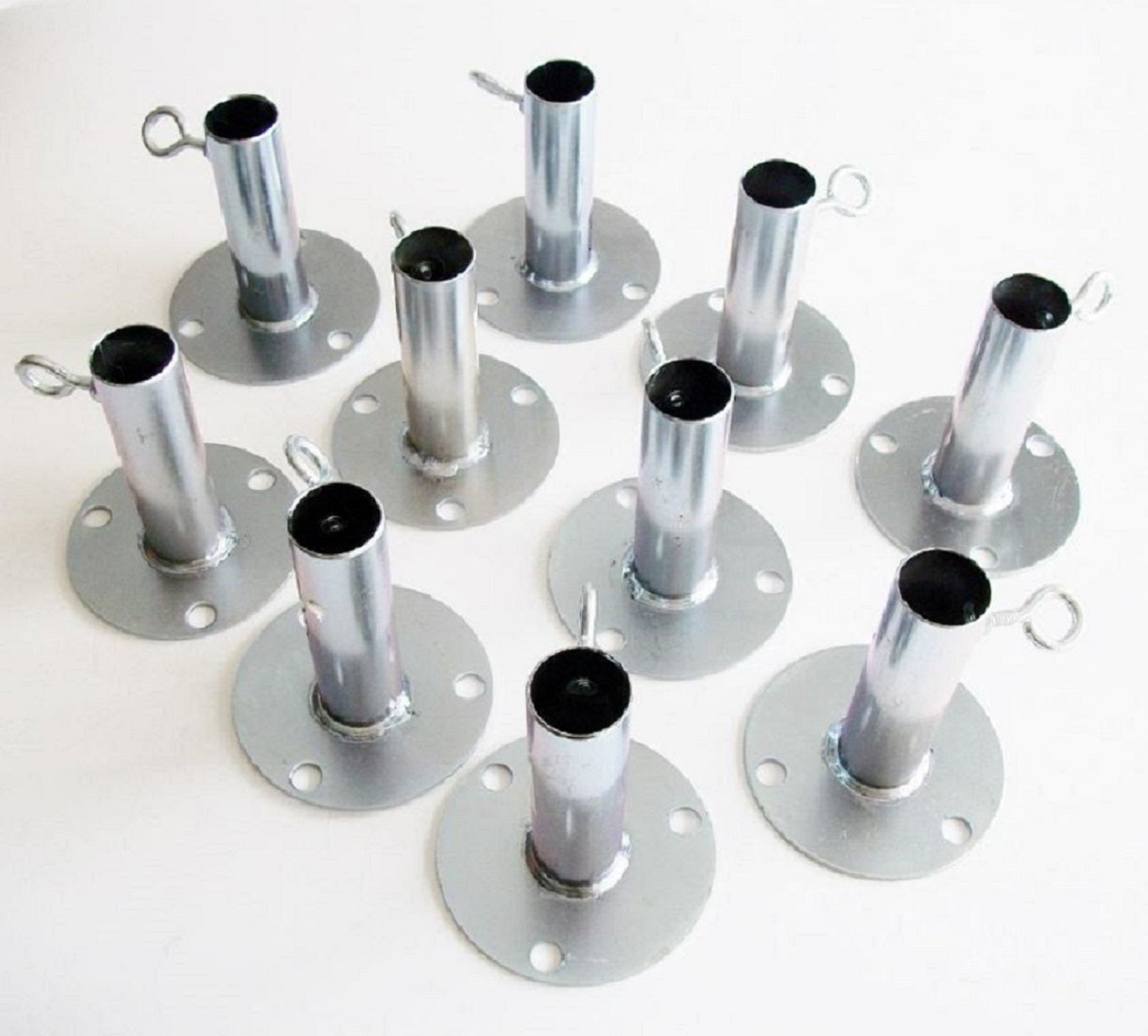

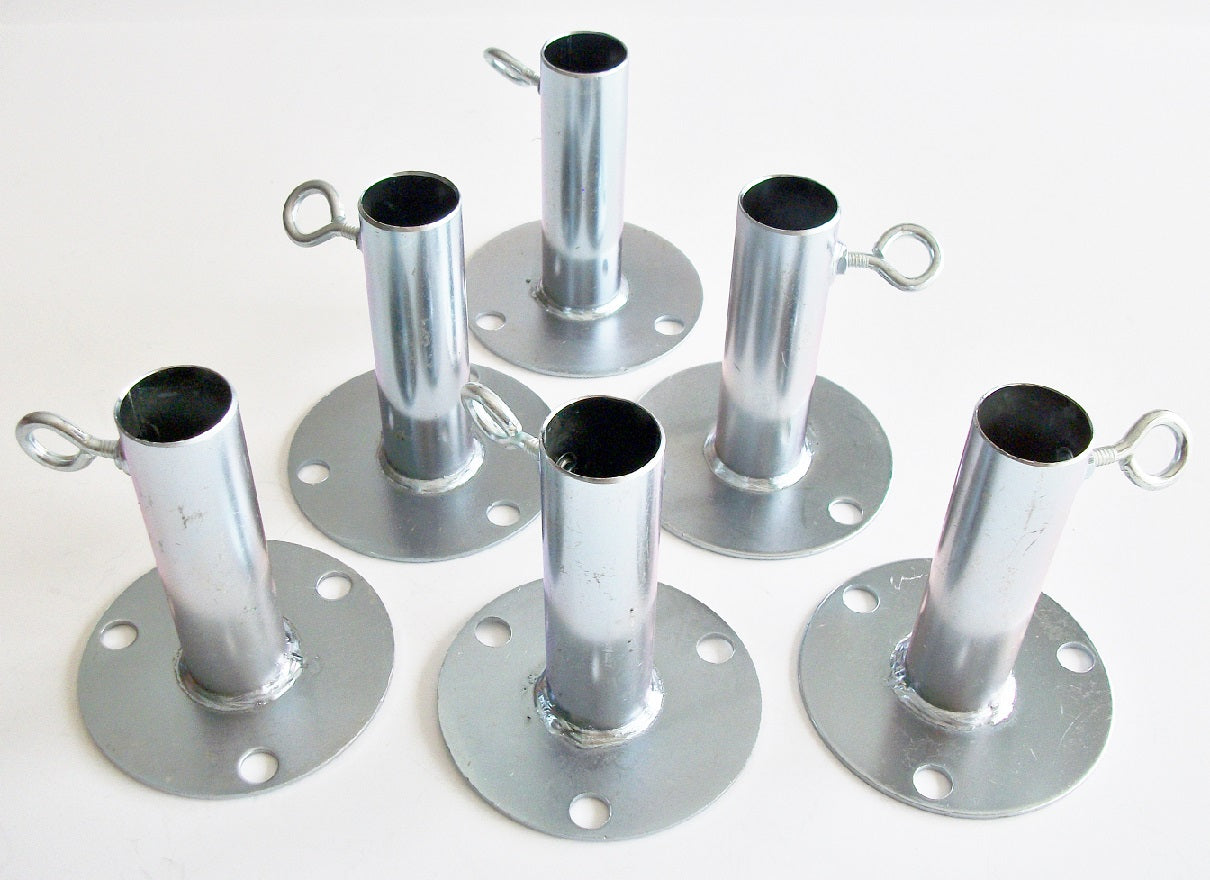

Foot Pad Option

Choose the With Foot Pads variant to add ground-contact foot pads to your kit for added ground securing stability and surface protection.
