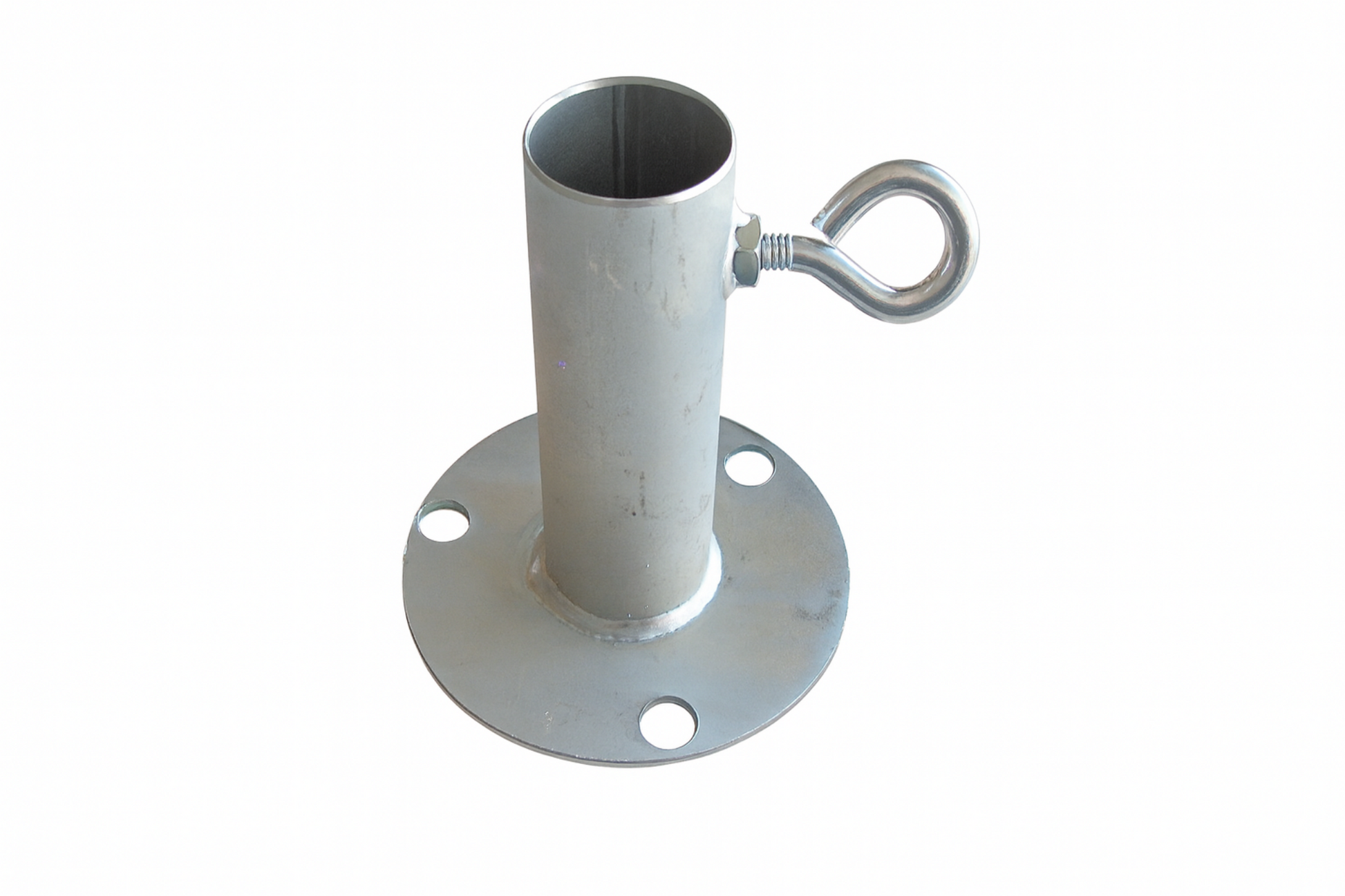

Short Foot Pad - Heavy Duty Canopy Fitting

This heavy‑duty galvanized steel Short Foot Pad is designed to stabilize canopy frames, protect surfaces, and anchor your setup securely. Built with fully welded nuts and tool‑free eye bolts for fast, reliable assembly.

• Heavy Duty galvanized steel fitting
• Hand tightening eye bolts - No tools required
• Eye bolt nuts are fully welded (not tack welded)
• Approx 4 3/4" tall
• Base diameter: 4 1/4"
• Includes three 1/2" anchor holes for secure mounting

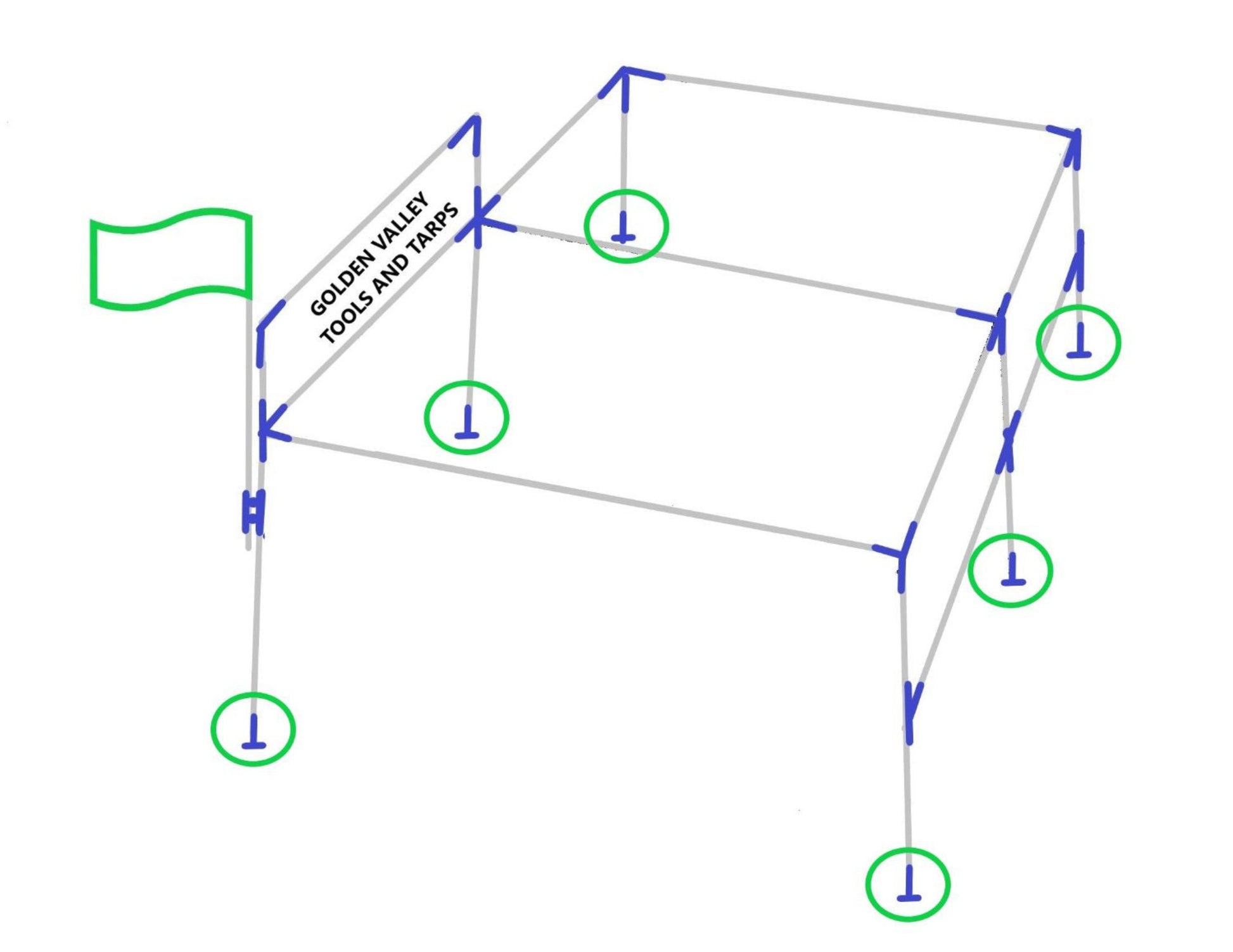

• Protects surfaces from your pipe ends and helps anchor your structure
• Can also be used for umbrella stands or flag stands
• Works with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies




  Fitting Size Specifics

  3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.



  1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"



  1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"



  1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16".
