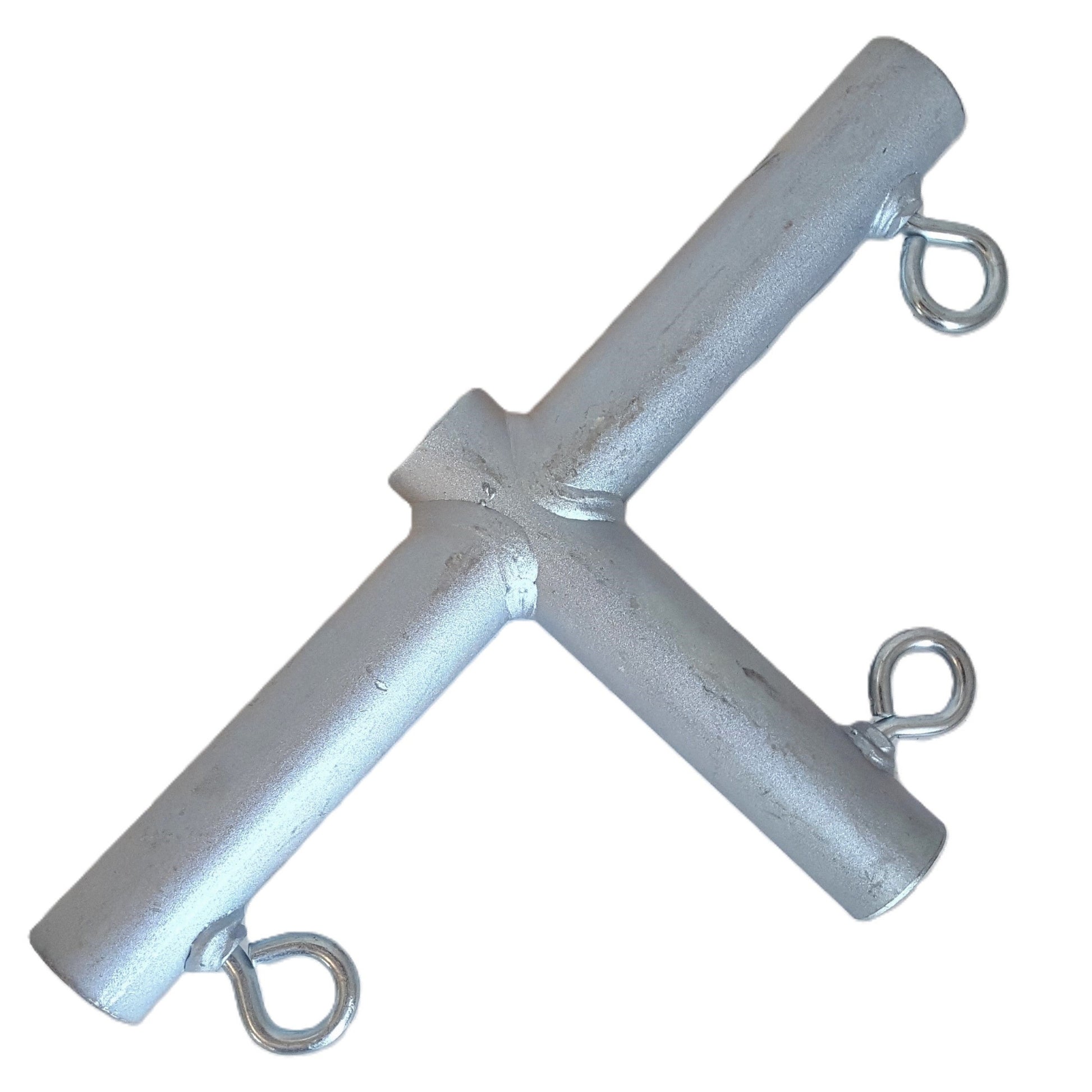

• Heavy duty galvanized steel 3-way T shaped slider canopy fitting with eye bolts

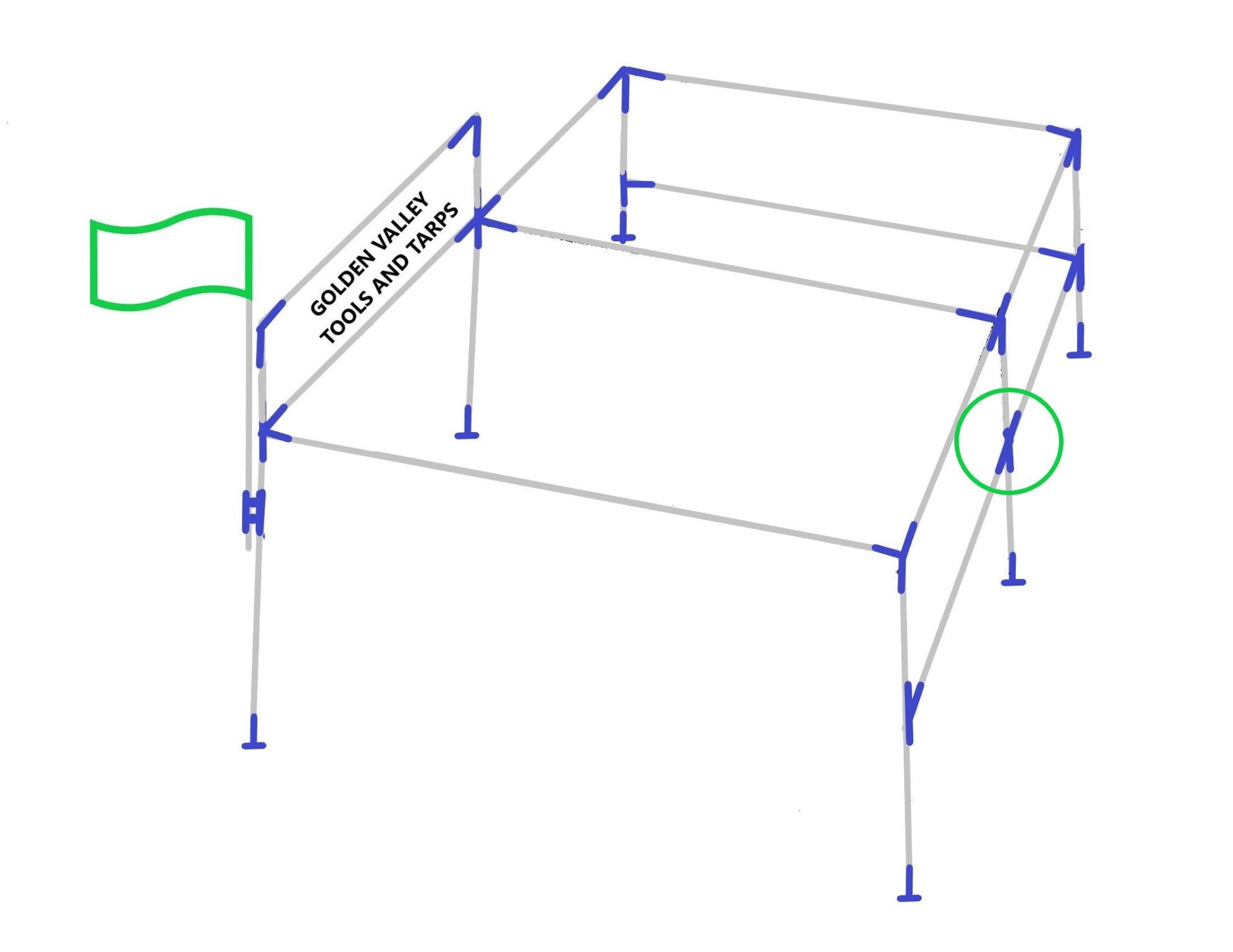

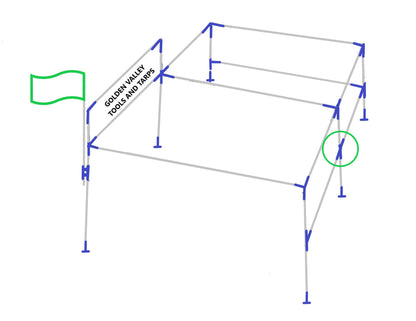

  • Diagram showing 3-way T shaped slider fitting placement on canopy frame structure
  • 3/4-inch canopy fitting size chart with pipe diameter specifications
  • 1-inch canopy fitting size chart with pipe diameter specifications
  • 1 3/8-inch canopy fitting size chart with pipe diameter specifications
  • 1 5/8-inch canopy fitting size chart with pipe diameter specifications
1 6

3 Way T Shaped Slider Heavy Duty Canopy Fitting

3 Way T Shaped Slider Heavy Duty Canopy Fitting

$17.38 USD
$17.38 USD
Sale Sold out
Shipping calculated at checkout.
  • Heavy Duty galvanized steel fitting
  • Hand tightening eye bolts so you don't have to use any tools. Nuts are welded all the way around (not tack welded)
  • 90 Degree angles
  • Adjusts your poles so you can add a side tarp, bring a tarp over the side, add additional pipes to the width or length, etc.
  • Works great with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies


    Fitting Size Specifics

    3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.



    1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"



    1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"



    1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16"



    Also shop: Poly & Mesh Tarps to cover your set up| Ball Bungees to attach tarp to bars| Foot Pads to anchor your setup, protect surfaces & create a stable base

450 in stock
