4 Way Low Peak Top End Down Angle with Leg Heavy Duty Canopy Fitting
4 Way Low Peak Top End Down Angle with Leg Heavy Duty Canopy Fitting
Couldn't load pickup availability

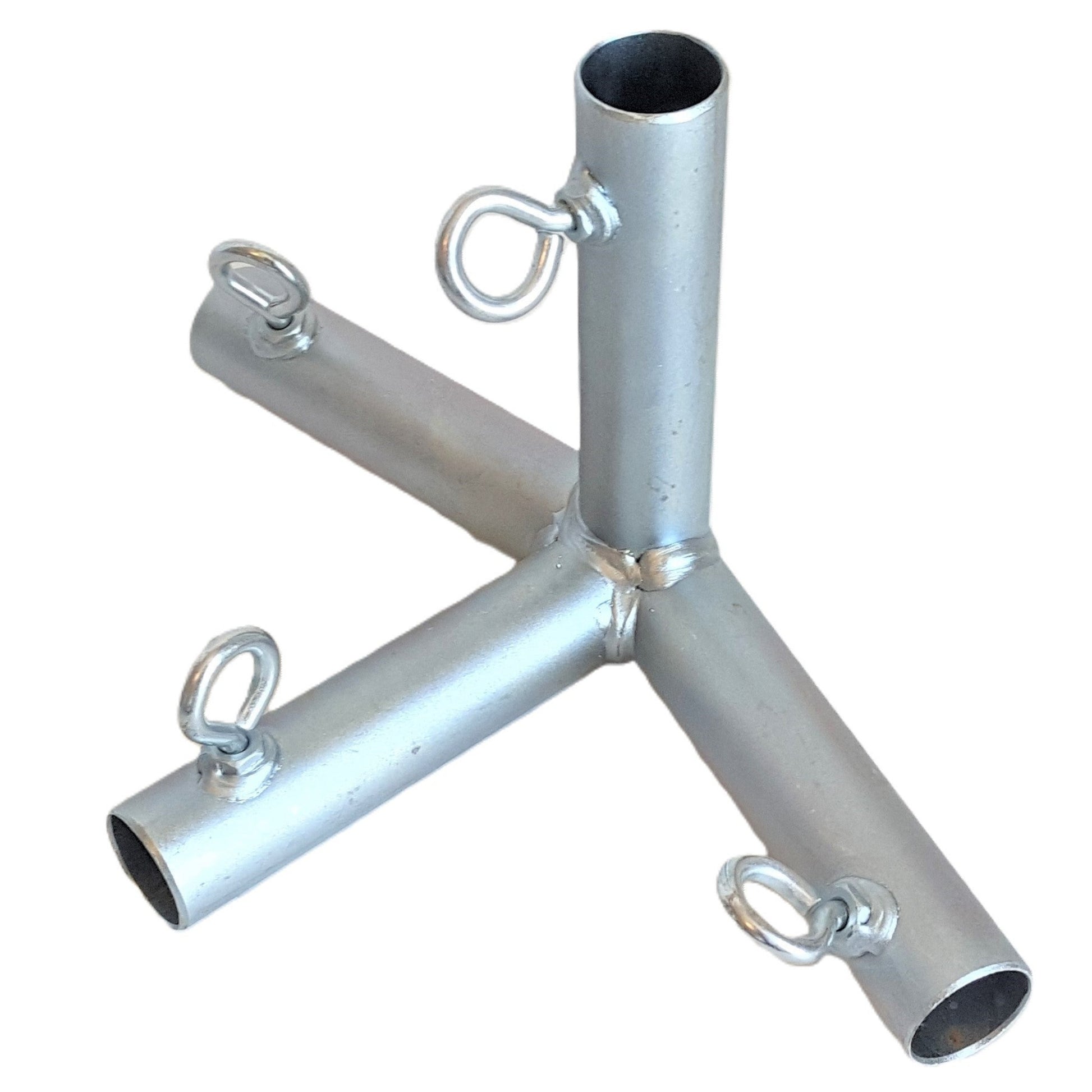

Heavy Duty galvanized steel fitting
- Hand tightening eye bolts so you don't have to use any tools. Nuts are welded all the way around (not tack welded)
- 78 Degree angle
- Great for the top end connection with leg support on low peak canopy builds and low peak structures
Works great with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies
Fitting Size Specifics
3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.
1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"
1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"
1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16".

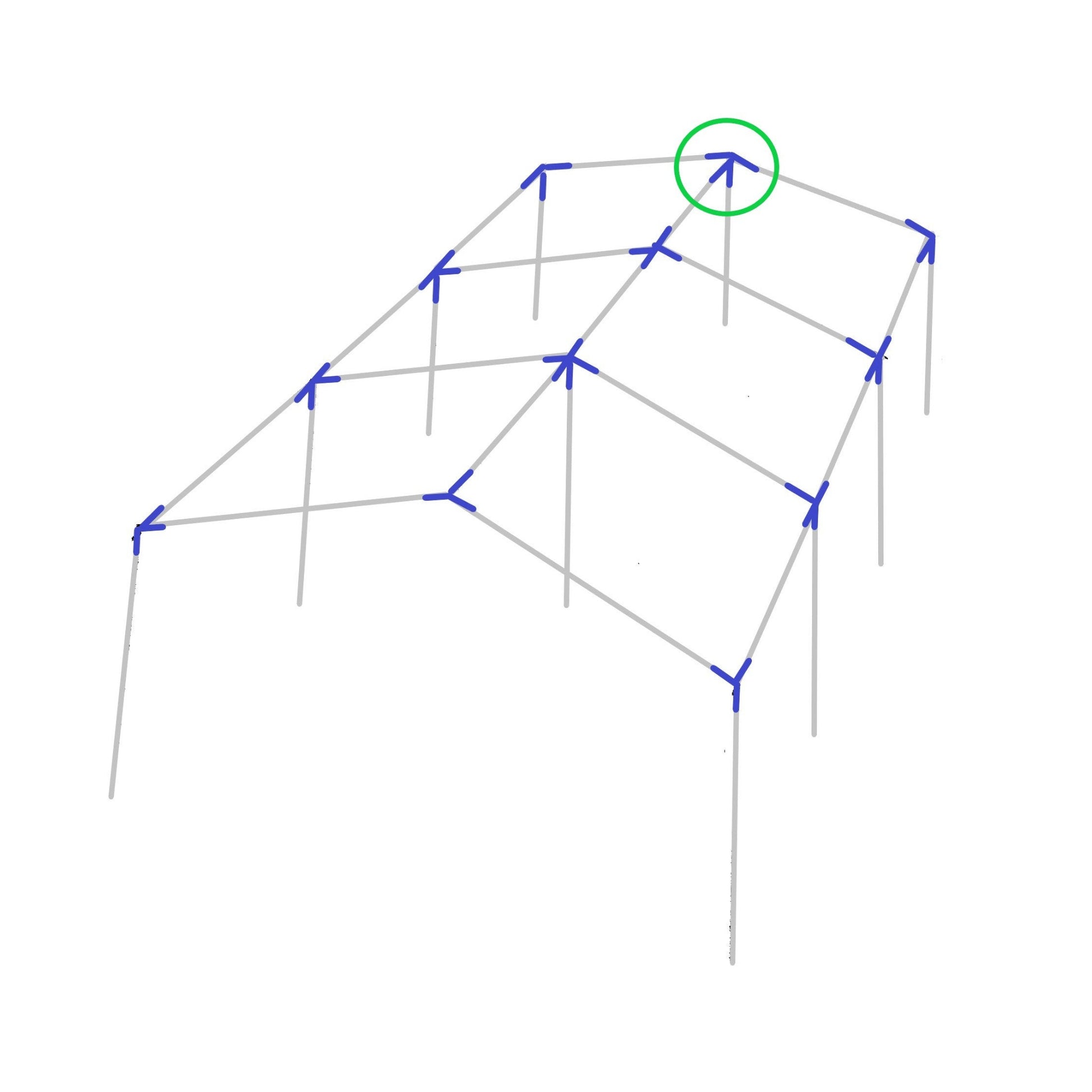

🔧 Complete Your Low Peak Canopy Build
Pair this fitting with others from our low peak family for a full heavy-duty canopy frame:
- 3 Way Corner Low Peak Up Angle Heavy Duty Canopy Fitting — up angled corner
- 3 Way Low Peak Top End Down Angle Heavy Duty Canopy Fitting — down angled top end connection
- 4 Way Edge Low Peak Up Angle Heavy Duty Canopy Fitting — up angled edge connection
- 4 Way Top Center Low Peak Down Angle Heavy Duty Canopy Fitting — down angled top center connection
- 5 Way Top Center Low Peak with Leg Heavy Duty Canopy Fitting — five-point center connection with leg
Also shop: Poly & Mesh Tarps to cover your set up| Ball Bungees to attach tarp to bars| Foot Pads to anchor your setup, protect surfaces & create a stable base

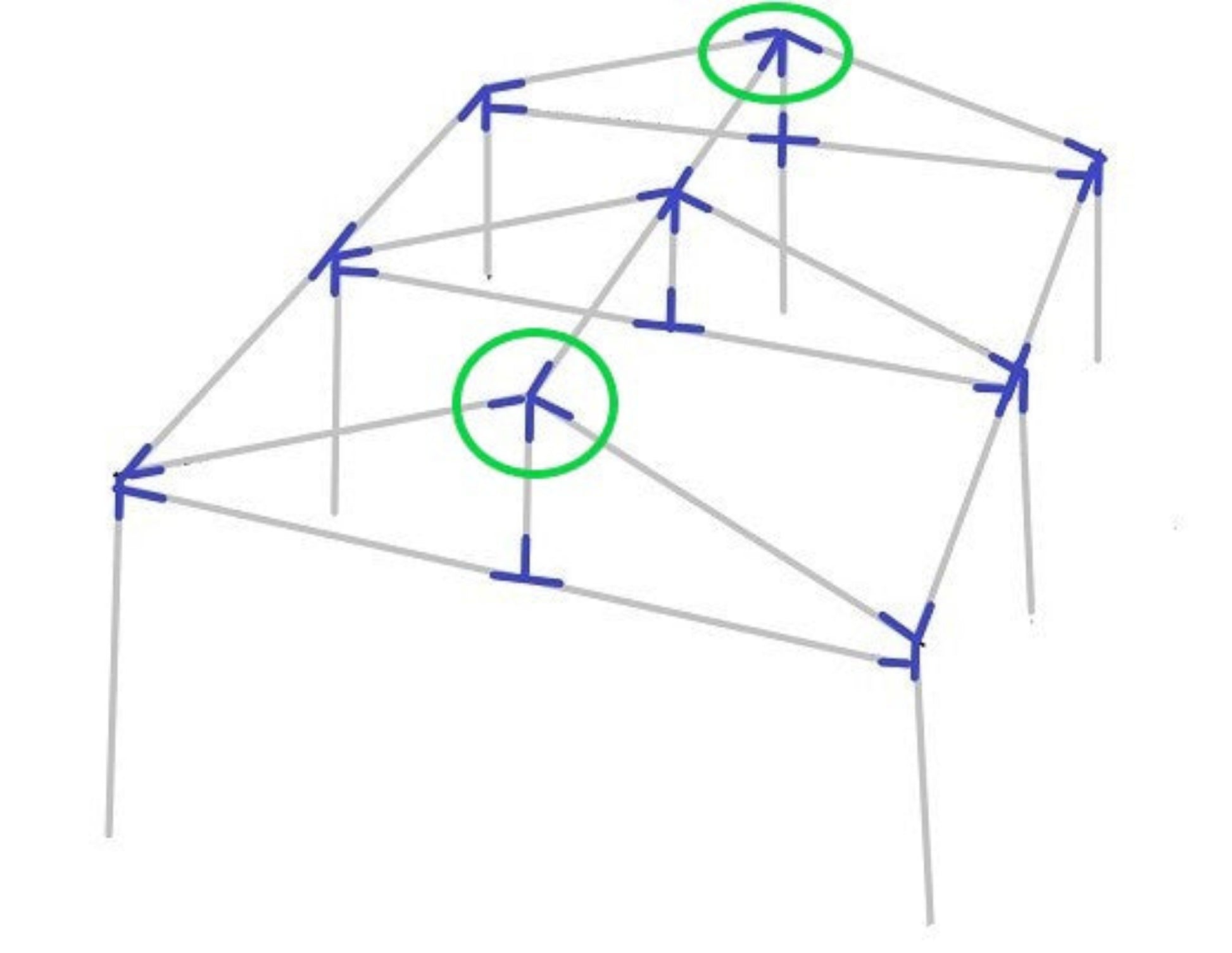

🔧 Complete Your Support Canopy Build
Pair this fitting with others from our support family for a full heavy-duty canopy frame:
- 4 Way Low Peak Left Support Corner Heavy Duty Canopy Fitting — left support corner connection
- 4 Way Low Peak Right Support Corner Heavy Duty Canopy Fitting — right support corner connection
- 5 Way Edge Low Peak Support Heavy Duty Canopy Fitting — edge support connection
- 5 Way Top Center Low Peak with Leg Heavy Duty Canopy Fitting — five-point center connection with leg
- 4 Way Flat X Heavy Duty Canopy Fitting — flat X to connect pipe for leg
- 3 Way T Shaped Heavy Duty Canopy Fitting — T-shaped connection for support fittings
Also shop: Poly & Mesh Tarps to cover your set up| Ball Bungees to attach tarp to bars| Foot Pads to anchor your setup, protect surfaces & create a stable base
