4 Way Edge Low Peak Up Angle Heavy Duty Canopy Fitting
4 Way Edge Low Peak Up Angle Heavy Duty Canopy Fitting
Couldn't load pickup availability

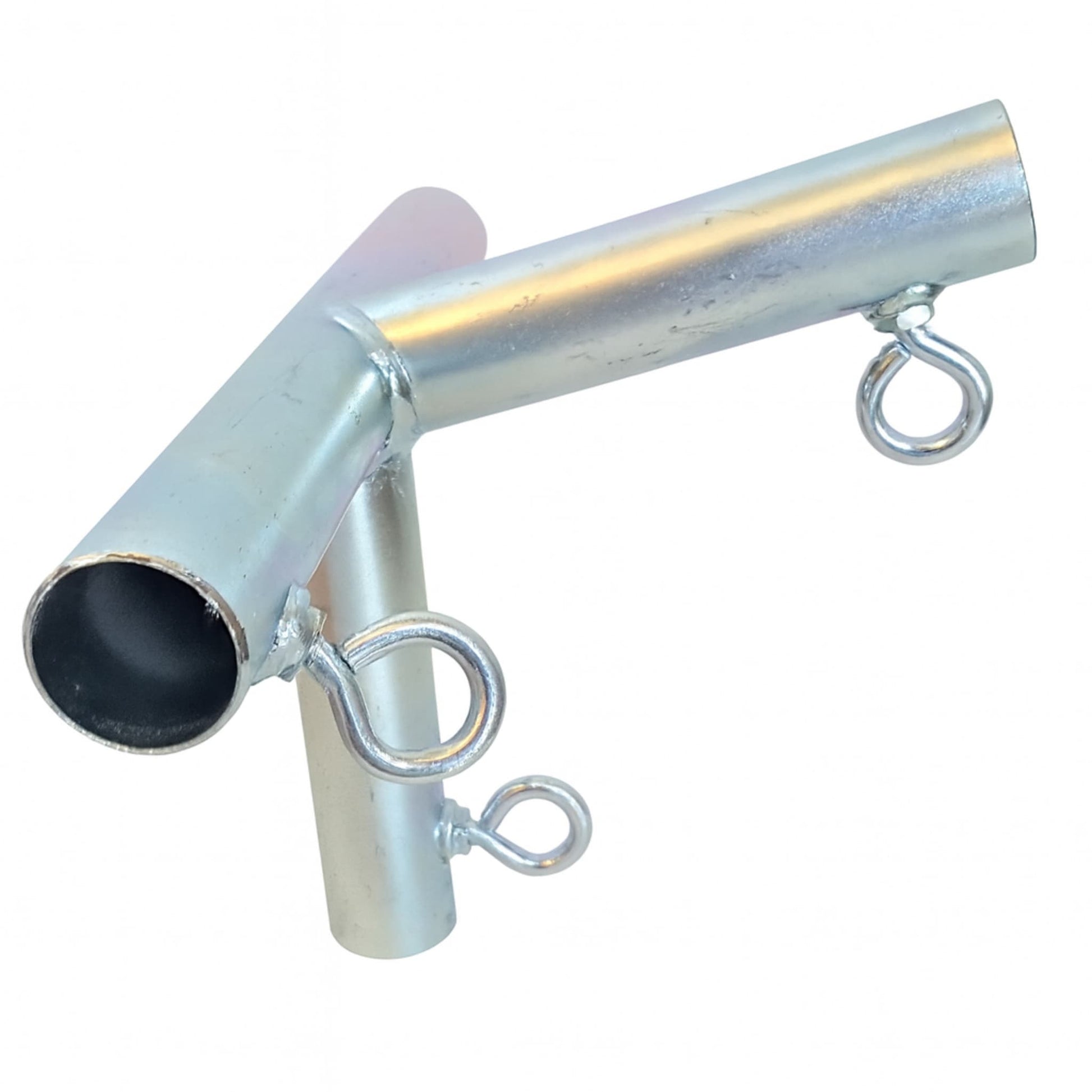

Heavy Duty galvanized steel fitting
- Hand tightening eye bolts so you don't have to use any tools. Nuts are welded all the way around (not tack welded)
- 78 Degree angle

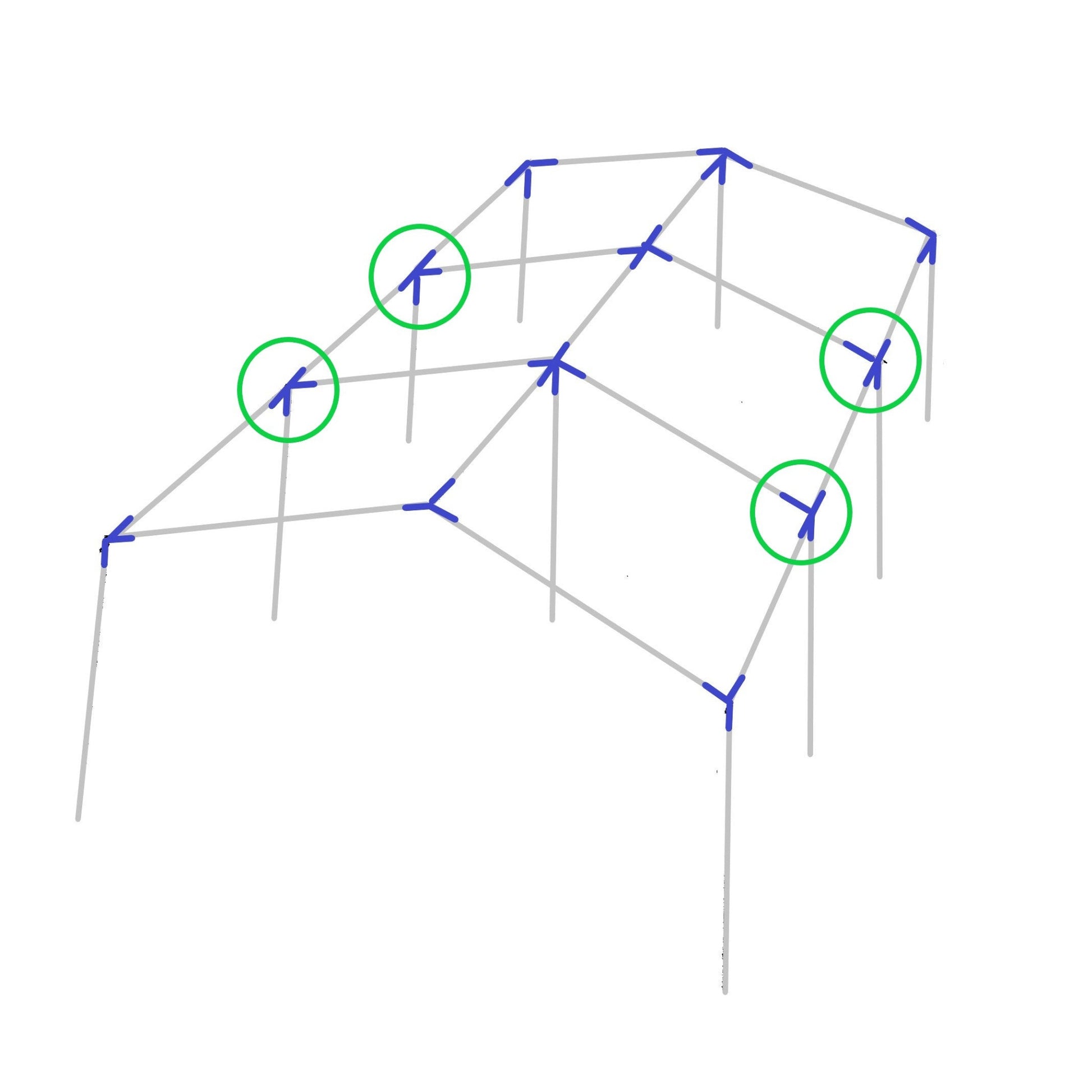

- Great for the up angled middle bottom edge connection on low peak canopy builds and low peak structures
Works great with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies
Fitting Size Specifics
3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.
1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"
1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"
1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16".
🔧 Complete Your Low Peak Canopy Build
Pair this fitting with others from our low peak family for a full heavy-duty canopy frame:
- 3 Way Corner Low Peak Up Angle Heavy Duty Canopy Fitting — up angled corner
- 3 Way Low Peak Top End Down Angle Heavy Duty Canopy Fitting — down angled top end connection
- 4 Way Top Center Low Peak Down Angle Heavy Duty Canopy Fitting — down angled top center connection
- 4 Way Low Peak Top End Down Angle with Leg Heavy Duty Canopy Fitting — top end connection with leg support
- 5 Way Top Center Low Peak with Leg Heavy Duty Canopy Fitting — five-point center connection with leg
-
Also shop: Poly & Mesh Tarps to cover your set up| Ball Bungees to attach tarp to bars| Foot Pads to anchor your setup, protect surfaces & create a stable base

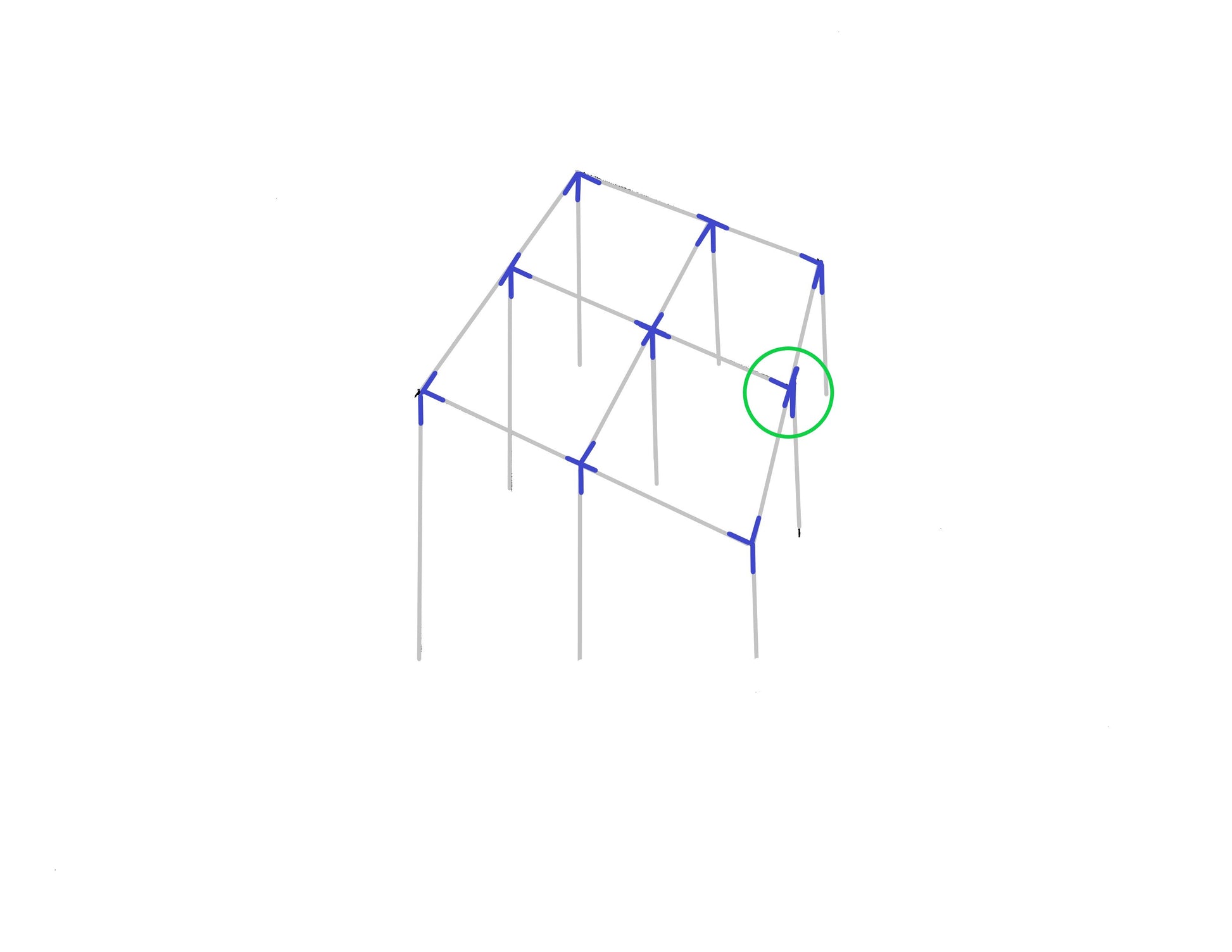

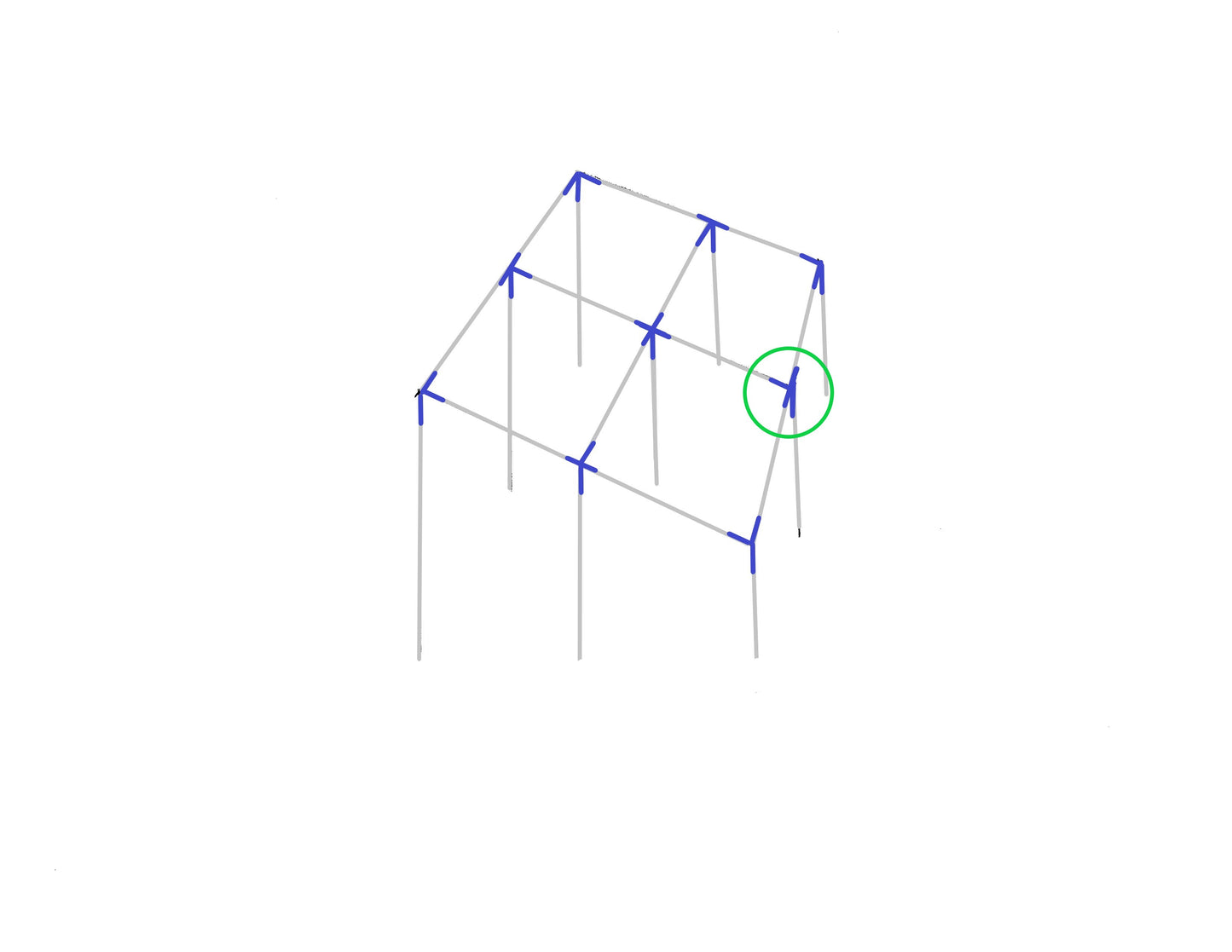

🔧 Complete Your Sloped Canopy Build
Pair this fitting with others from our slope & angle family for a full heavy-duty lean to/sloped canopy frame:
- 3 Way Corner Lean To Down Slope Canopy Fitting — slanted top corner connection
- 3 Way Corner Low Peak Up Angle Fitting — up angled bottom corner
- 4 Way Top Lean To Down Slope Canopy Fitting — down angled middle top connection on sloped roof
- 4 Way Lean To Left Side Edge Slant Leg Fitting — left edge slant leg support
- 4 Way Lean To Right Side Edge Slant Leg Fitting — right edge slant leg support
- 5 Way Top Center Slant Leg Slope Fitting — five-point center connection with leg
- 4 Way Flat X Heavy Duty Canopy Fitting -- 4 way flat x center connection no leg
Also shop: Poly & Mesh Tarps to cover your set up| Ball Bungees to attach tarp to bars| Foot Pads to anchor your setup, protect surfaces & create a stable base
449 in stock
View full details
