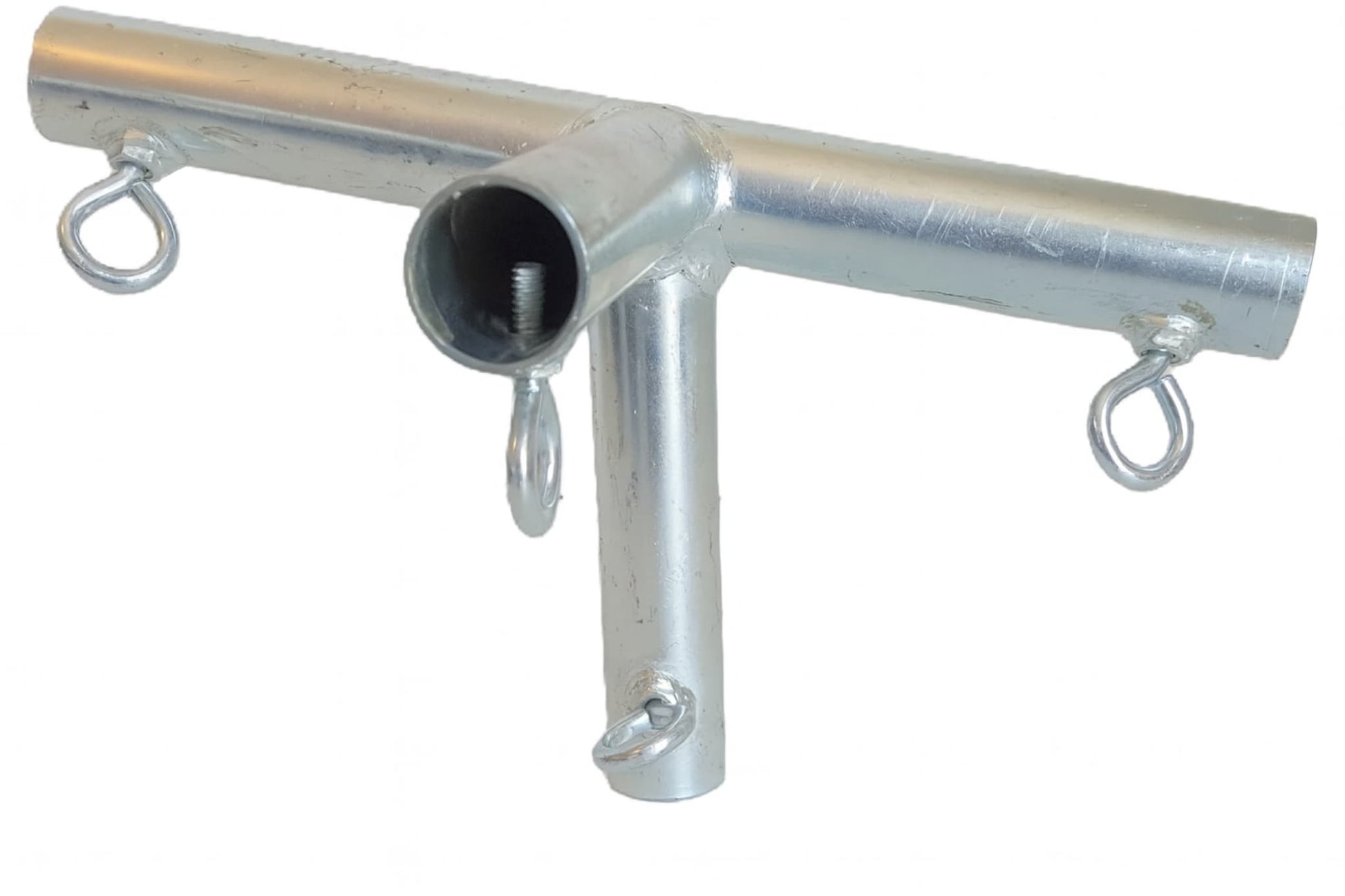

4 Way Lean To Right Side Edge Slant Leg Heavy Duty Canopy Fitting

Heavy Duty galvanized steel fitting

• Hand tightening eye bolts so you don't have to use any tools. Nuts are welded all the way around (not tack welded)
• 78 Degree angle

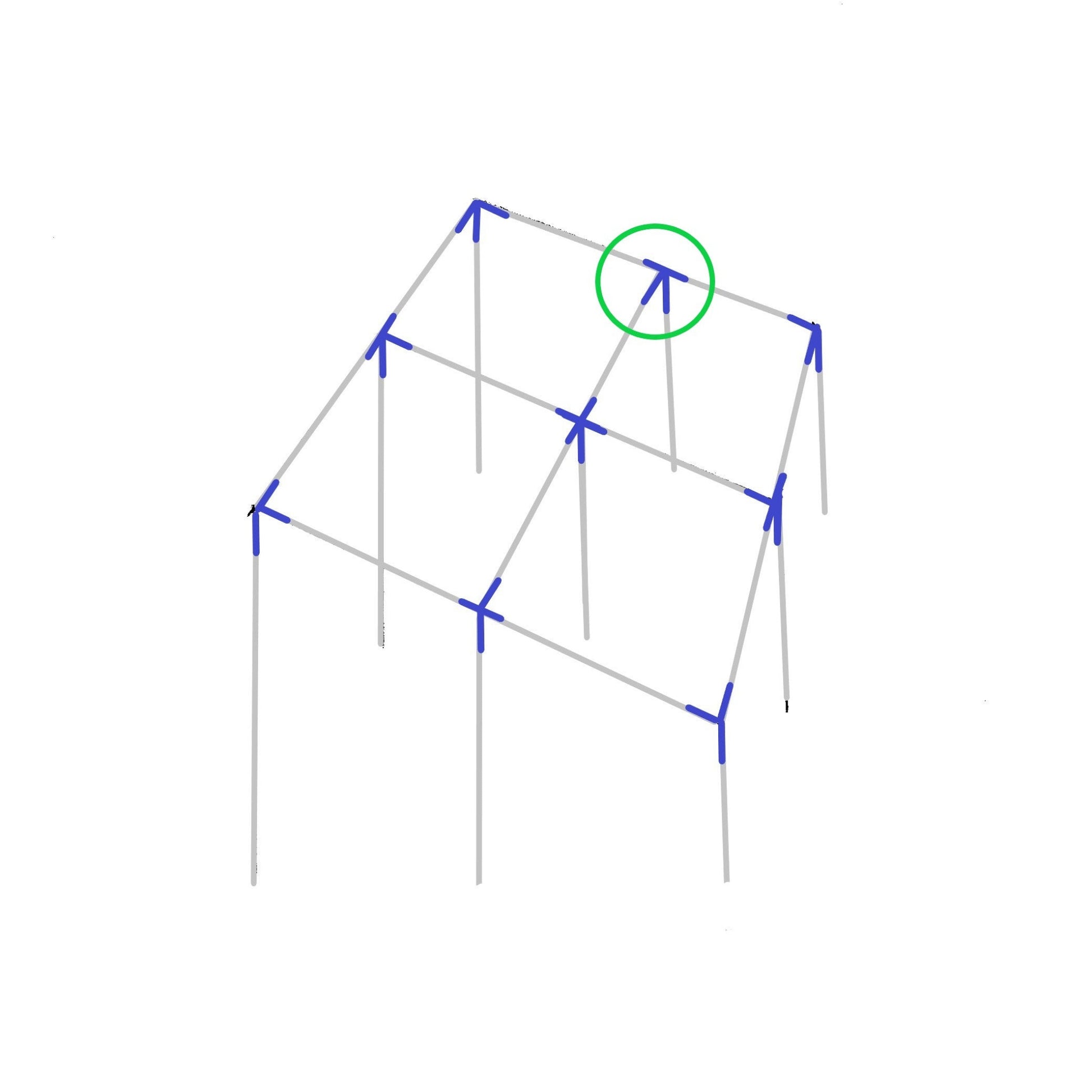

• Great for the right side edge slant leg connection on lean to and sloped canopy builds

Works great with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies

Fitting Size Specifics

3/4": Our 3/4" fittings have an inner diameter of 1" which works with 3/4" EMT pipe that has an outer diameter of 15/16" or .922.

1": Our 1" fittings have an inner diameter of 1 1/4" which works with 1" EMT pipe that has an outer diameter of 1 3/16"

1 3/8": Our 1 3/8" fittings have an inner diameter of 1 3/8" which works with 1 3/8" EMT pipe or chain link fence top rail that has an outer diameter of 1 5/16"

1 5/8": Our 1 5/8" fittings have an inner diameter of 1 3/4" which works with 1 5/8" chain link fence top rail/posts that has an outer diameter of 1 11/16".
