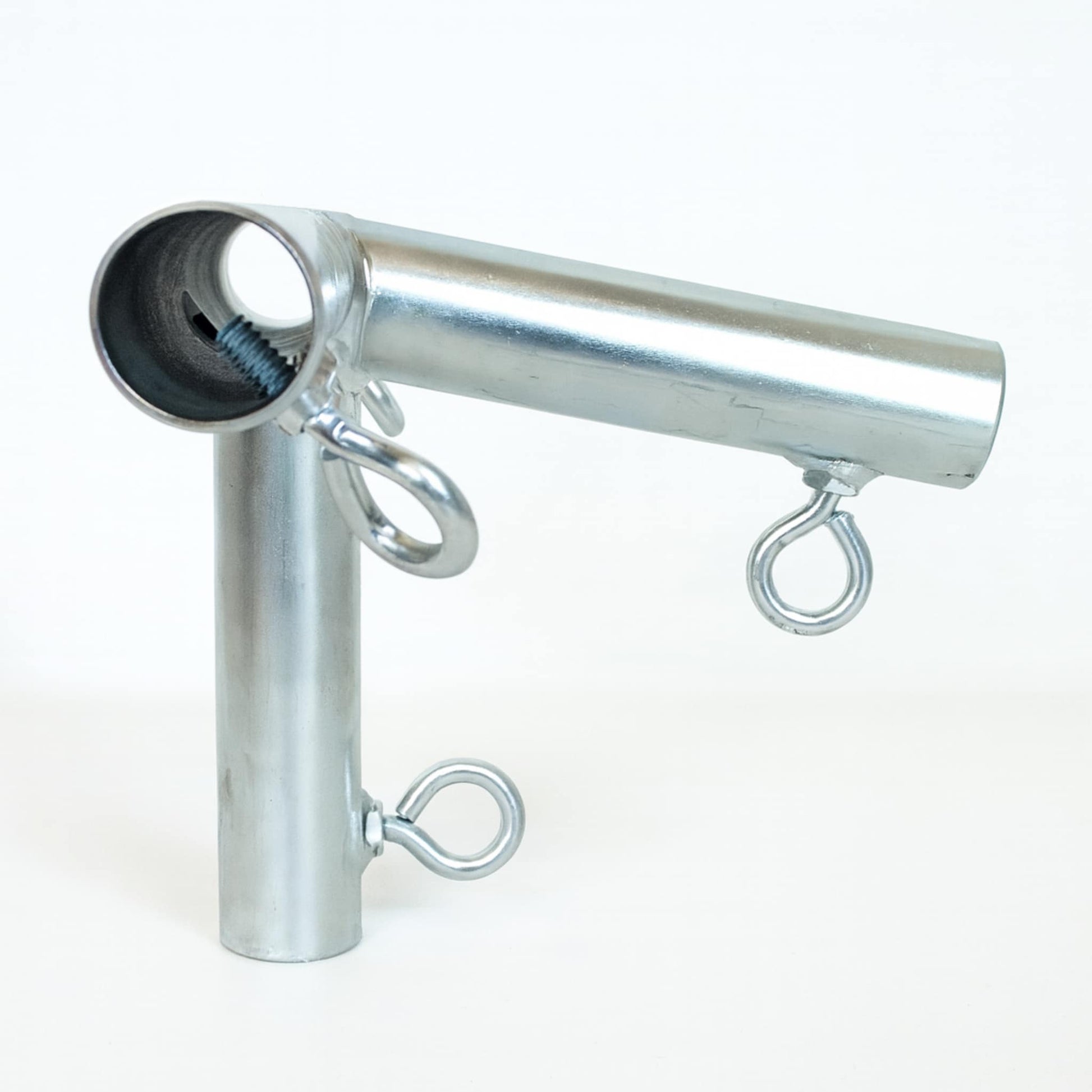

• Heavy duty galvanized steel 4-way lean to slope canopy fitting with eye bolts
  • Diagram showing 4-way slant lean to top middle fitting placement on canopy frame structure
  • 3/4-inch canopy fitting size chart with pipe diameter specifications
  • 1-inch canopy fitting size chart with pipe diameter specifications
  • 1 3/8-inch canopy fitting size chart with pipe diameter specifications
  • 1 5/8-inch canopy fitting size chart with pipe diameter specifications
1 6

4 Way Top Lean to Down Slope Slant Angle Heavy Duty Canopy Fitting

4 Way Top Lean to Down Slope Slant Angle Heavy Duty Canopy Fitting

$20.93 USD
$20.93 USD
Sale Sold out
Shipping calculated at checkout.
  • Heavy Duty galvanized steel fitting
  • Hand tightening eye bolts so you don't have to use any tools. Nuts are welded all the way around (not tack welded)
  • 78 Degree angle
  • Great for top middle of a slope or angle roof set up to extend length, pet pen cover/shade, children's play area, slope canopies for patios or outdoor shelters
  • Works great with EMT pipe (electrical conduit) or chain link fencing pipe that is available at most hardware stores and/or fencing companies


                              Fitting Size Specifics

    3/4": Our 3/4" fittings have an inner diameter of 1"

    which works with 3/4" EMT pipe that has

    an outer diameter of 15/16" or .922.

     1": Our 1" fittings have an inner diameter of 1 1/4"

    which works with 1" EMT pipe that has

    an outer diameter of 1 3/16"

    1 3/8": Our 1 3/8" fittings have an inner diameter of

    1 3/8" which works with 1 3/8" EMT

    pipe or chain link fence top rail that

    has an outer diameter of 1 5/16".

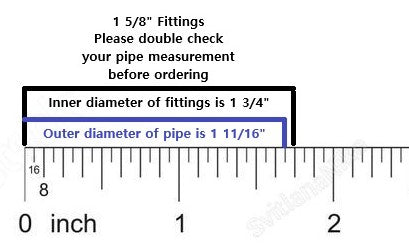

    1 5/8": Our 1 5/8" fittings have an inner diameter of

     1 3/4" which works with 1 5/8" chain

    link fence top rail/posts that has

    an outer diameter of 1 11/16".





450 in stock
